Connect a control plane

Connecting a Kubernetes cluster as a control plane to the Upbound Hub allows you to observe its resources in the Console or Hub API.

note

To connect control planes managed by Upbound Spaces, see how to connect a Space.

Prerequisites​

  • A control plane to connect: the Kubernetes cluster whose resources you want to observe, and a kubeconfig context for it.
  • Upbound Hub, reachable from the control plane.
  • A realm for the control plane, and admin permissions within that realm.
  • Access to the Console, or kubectl configured with a hub context that targets the Hub.
  • Helm 3.

Step 1: Declare the control plane​

Declare the control plane in Upbound Hub to assign its realm and name, then get a connector registration token.

  1. In the Console, open the navigation menu and choose Control planes under Infrastructure.

  2. Select Register Control Plane.

  3. Choose the realm that owns the control plane, and enter a name for it. When Hub has only one realm, the Console fills it in for you. The name must be unique within that realm.

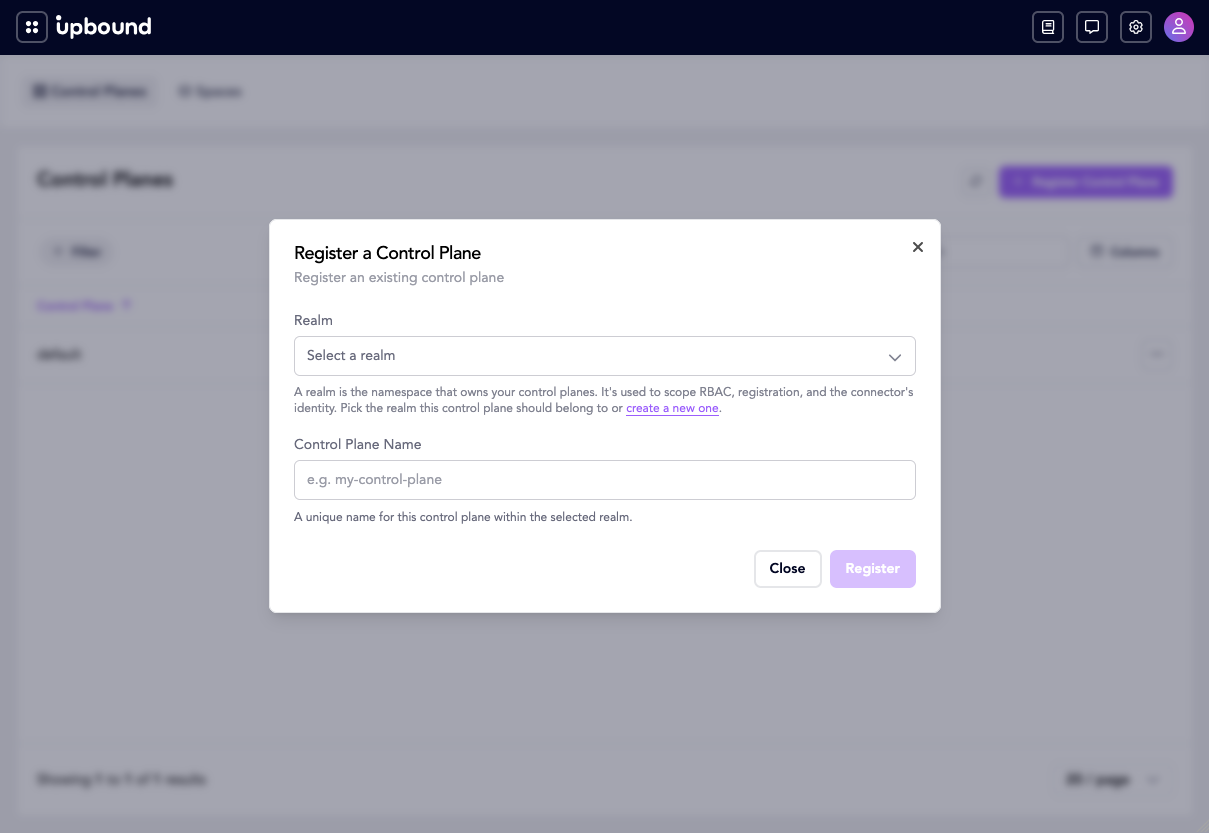

    The Register a Control Plane dialog, with a realm selector and name field The Register a Control Plane dialog, with a realm selector and name field

  4. Select Register. The Console registers the control plane and immediately shows its registration token. Copy it now (see Step 2).

Step 2: Get the registration token​

Capture the registration token from Step 1. Use it to deploy the connector in Step 3.

warning

The Console and kubectl return the registration token only once, and you can't retrieve it after creation. The token is valid for 24 hours. You can issue a new token at any time, but issuing one doesn't revoke earlier tokens.

After a connector registers the control plane, no other token can register it. To hand the control plane to a new connector, for example after you move the connector to another cluster, deregister the control plane first.

Copy the registration token displayed after you created the control plane. The Console will not show it again.

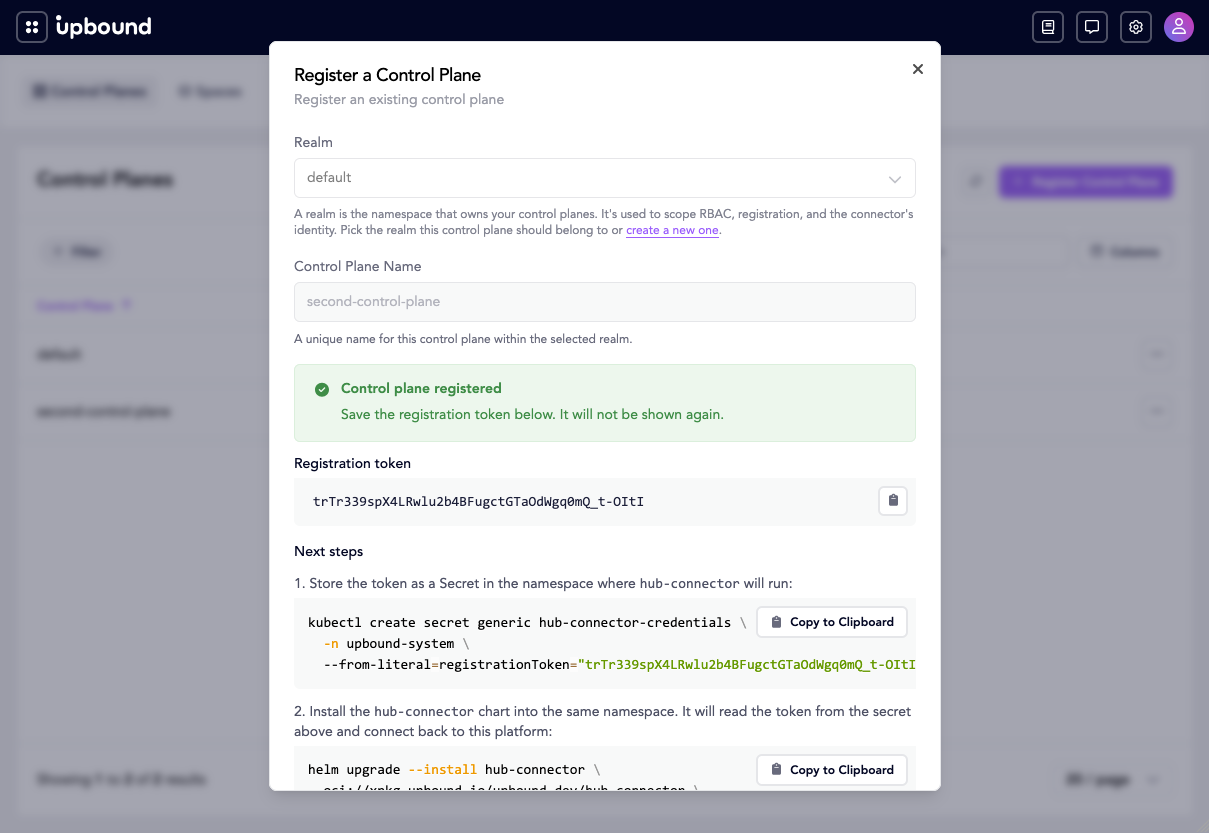

The Console showing the registration token and the next steps to deploy the connector The Console showing the registration token and the next steps to deploy the connector

Set it as an environment variable for Step 3:

REGISTRATION_TOKEN=<paste-registration-token>

Step 3: Deploy the connector​

Deploy the connector to the control plane. The connector completes the control plane's registration and syncs its resources.

Set the kubeconfig context for the control plane:

CONTROL_PLANE_CONTEXT=<control-plane-context>

Create a namespace and a secret holding the registration token:

kubectl --context="$CONTROL_PLANE_CONTEXT" create namespace upbound-system

kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  create secret generic hub-connector-credentials \
  --from-literal=registrationToken="$REGISTRATION_TOKEN"

Install the connector chart, pointing it at the Hub:

helm install hub-connector oci://xpkg.upbound.io/upbound/hub-connector \
--version 1.2.0 \
--kube-context "$CONTROL_PLANE_CONTEXT" \
--namespace upbound-system \
--set connector.hub.url=<hub-url>

Notes:

  • connector.credentials.existingSecretRef.name defaults to hub-connector-credentials. Override it only if you named the secret differently.
  • connector.sync.limitToClusterRoles limits which resources the connector syncs to those authorized by the listed ClusterRoles. It defaults to crossplane-admin which only syncs Crossplane resources. Set it to [] to sync all resources.

Step 4: Verify the connector started​

Confirm the connector pods reach Ready:

kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  wait --for=condition=Ready pod \
  --selector app.kubernetes.io/name=hub-connector --timeout=120s
kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  get pods --selector app.kubernetes.io/name=hub-connector

Step 5: Observe from Insights​

View the control plane and its resources in Insights.

  1. Open the control planes view. The control plane you created shows a status of Ready.

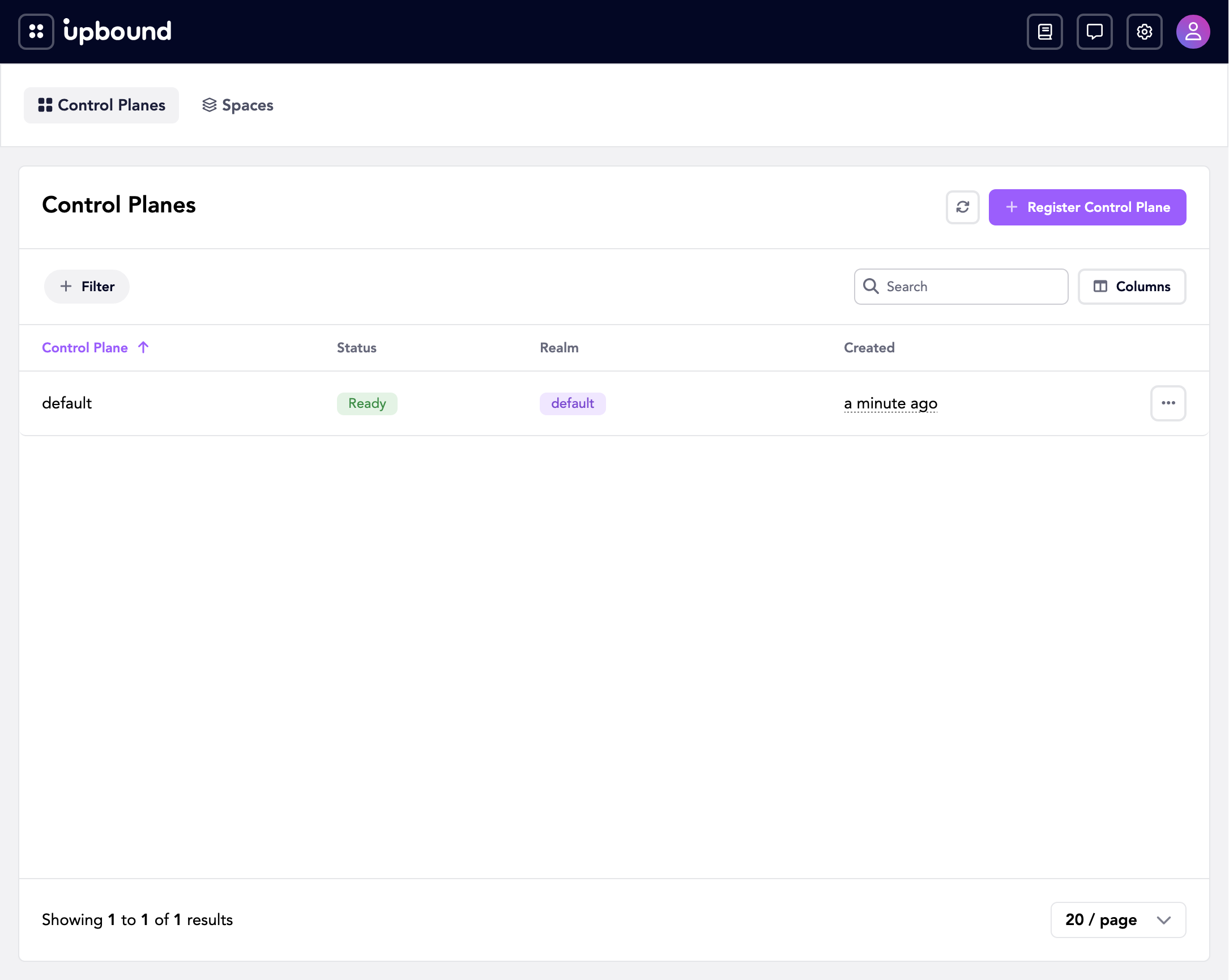

    The Upbound Hub control planes view showing the connected control plane with a Ready status. The Upbound Hub control planes view showing the connected control plane with a Ready status.

  2. Open its resources view to see the resources synced from the control plane.

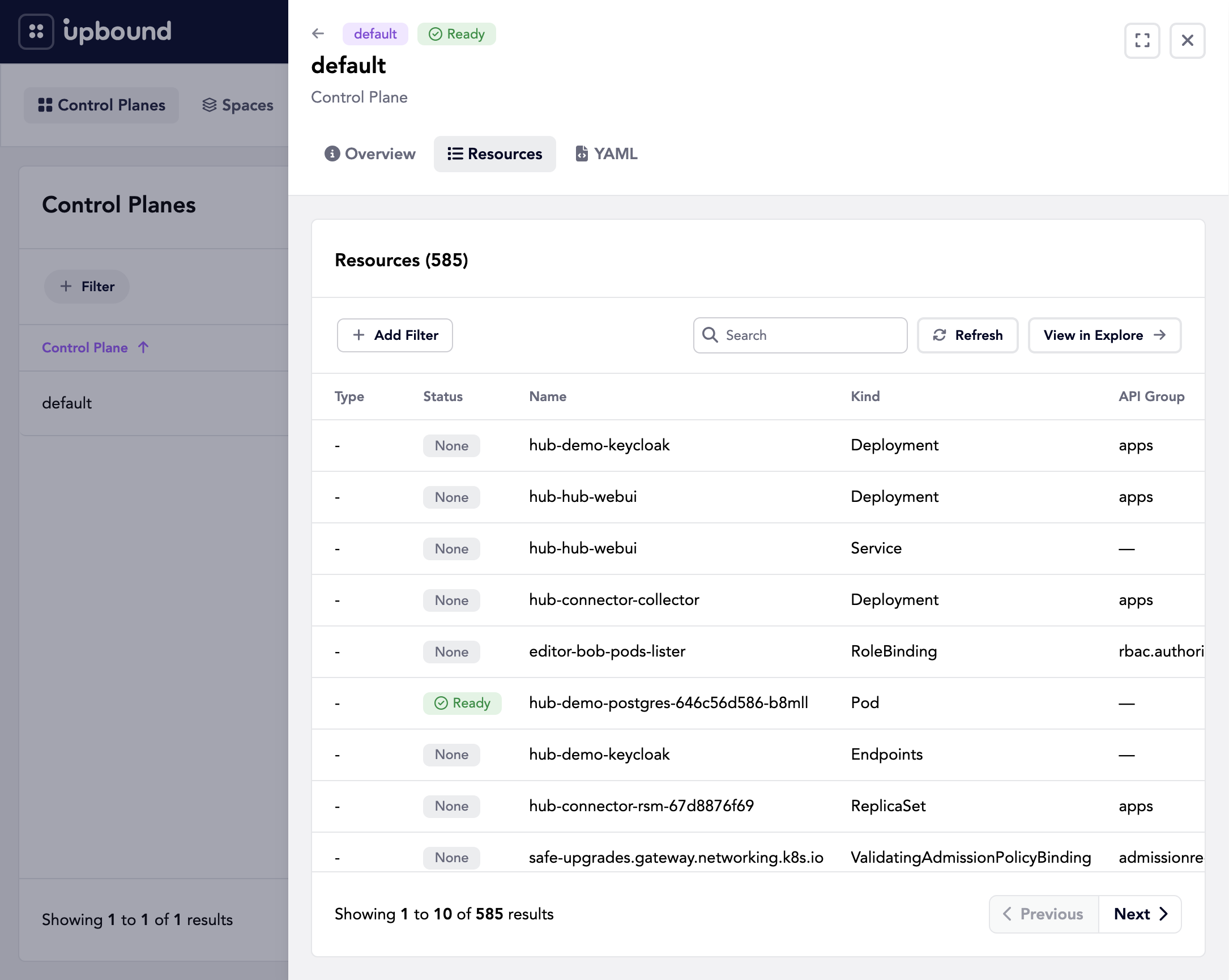

    The control plane resources view listing the resources synced from the connected control plane. The control plane resources view listing the resources synced from the connected control plane.

Troubleshooting​

The connector pods don't reach Ready​

Check the pod status and events:

kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  describe pod --selector app.kubernetes.io/name=hub-connector

The connector registers the control plane in its resolve-identity init container, and the pod doesn't start the connector until registration succeeds. If registration fails, the pod stays in Init or Init:CrashLoopBackOff, and the control plane stays Pending. Read the init container's logs to see why:

kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  logs deployment/hub-connector -c resolve-identity

Common causes:

  • The hub-connector-credentials secret is missing, or its token expired before the control plane registered. Issue a new token (Step 2), update the secret, and restart the connector. To update the secret, replace it with the new token:

    kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
      create secret generic hub-connector-credentials \
      --from-literal=registrationToken="$REGISTRATION_TOKEN" \
      --dry-run=client -o yaml \
      | kubectl --context="$CONTROL_PLANE_CONTEXT" apply -f -

  • The control plane is already registered to another connector, for example after you reinstall the connector on a different cluster. Deregister the control plane, issue a new token (Step 2), update the secret, and restart the connector.

  • The connector can't reach the Hub. See The connector can't reach the Hub.

To deregister a control plane so a new connector can register it:

kubectl --context=hub delete --raw \
  "/apis/fleet.hub.upbound.io/v1beta1/namespaces/<realm>/controlplanes/<control-plane-name>/registration"

To restart the connector after you update the secret:

kubectl --context="$CONTROL_PLANE_CONTEXT" --namespace upbound-system \
  rollout restart deployment hub-connector

The control plane stays Pending​

A control plane stays Pending until its connector completes registration. Check the phase:

kubectl --context=hub --namespace <realm> \
  get controlplane <control-plane-name> -o jsonpath='{.status.phase}'

The phase changes to Ready as soon as registration succeeds, which is also when the connector pods can become Ready. If the phase stays Pending, see The connector pods don't reach Ready.

The connector can't reach the Hub​

The connector registers with and pushes to the Hub at connector.hub.url. From the control plane, confirm that URL is correct and reachable, and that any firewall or network policy allows egress to the Hub. The connector refuses a plain http:// URL unless the host is cluster-local, so use https:// for a Hub outside the cluster. Correct the value and upgrade the release:

helm upgrade hub-connector oci://xpkg.upbound.io/upbound/hub-connector \
--version 1.2.0 \
--kube-context "$CONTROL_PLANE_CONTEXT" \
--namespace upbound-system \
--reuse-values \
--set connector.hub.url=<hub-url>

No resources appear for the control plane​

By default the connector syncs only resources authorized by the crossplane-admin ClusterRole. If the resources you expect aren't covered by that role, they don't sync. Widen connector.sync.limitToClusterRoles, or set it to [] to sync everything, then upgrade the release.

Next steps​

  • Access management: Grant users and groups access to the control plane and its resources.
